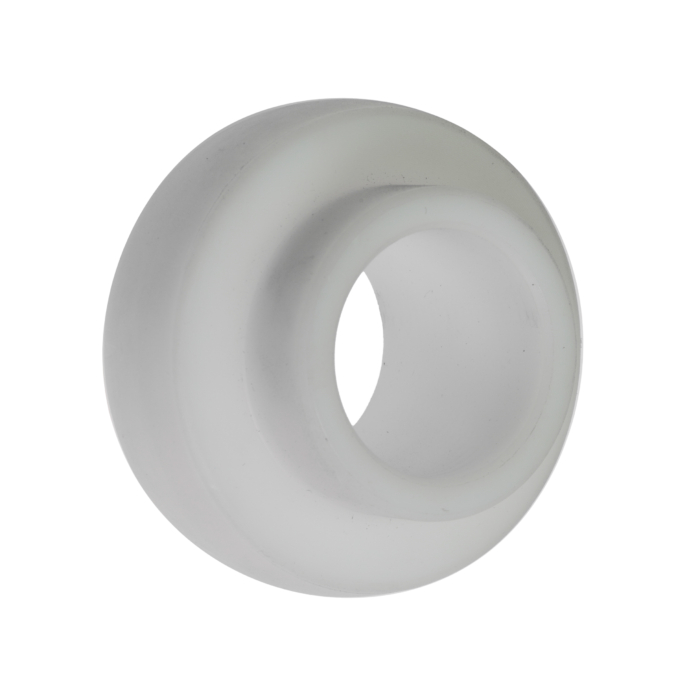

Plastic bearing inserts

Delrin is a synthetic polymer derived from polyoxymethylene, providing low friction and dimensional stability. NBC carries stock to reflect demand but is able to provide Delrin inserts for all metric QCB thermoplastic sizes.

Enquire Now

Got a project that demands precision?

Our engineers design, manufacture, and supply components to your exact specification. Contact us to discuss your project.

Get In Touch

Product Overview

Plastic bearing inserts or solid DELRIN inserts for where AISI 440 cannot be used.

Dimensions

Warning: Undefined array key "alt" in /home/nbcgroup/public_html/app/themes/wmm/template-parts/products/tab-repeater.php on line 208

Enquire Now

Enquire Now About Plastic bearing inserts

For any enquiries regarding Plastic bearing inserts, please complete our enquiry form, and a member of our technical team will respond promptly. Alternatively, you can reach out directly to one of our offices using the contact details here. Our specialists are ready to provide guidance and support tailored to your machinery and engineering needs.

BEARING NUMBER		DIMENSIONS MM
BEARING NUMBER	BORE DIA	Tolerance	D	Bi	M	Be	W	F
PNS 201	12	+0.03	47	31	18.3	17	29	1.5
PNS 202	15		47	31	18.3	17	29	1.5
PNS 203	17	+0.06	47	31	18.3	17	29	1.5
PNS 204	20	+0.04	47	31	18.3	17	29	1.5
PNS 205	25		52	34	19.7	17	34	1.5
PNS 206	30	+0.04	62	38.1	22.2	19	40.5	1.5
PNS 207	35	+0.05	72	42.9	25.4	20	48	1.5
PNS 208	40	+0.10	80	49.2	30.2	21	53	1.5
PNS 209	45	+0.06	85	49.2	30.2	22	57.3	1.5
PNS 210	50	+0.12	90	51.6	32.6	23	63	1.5
