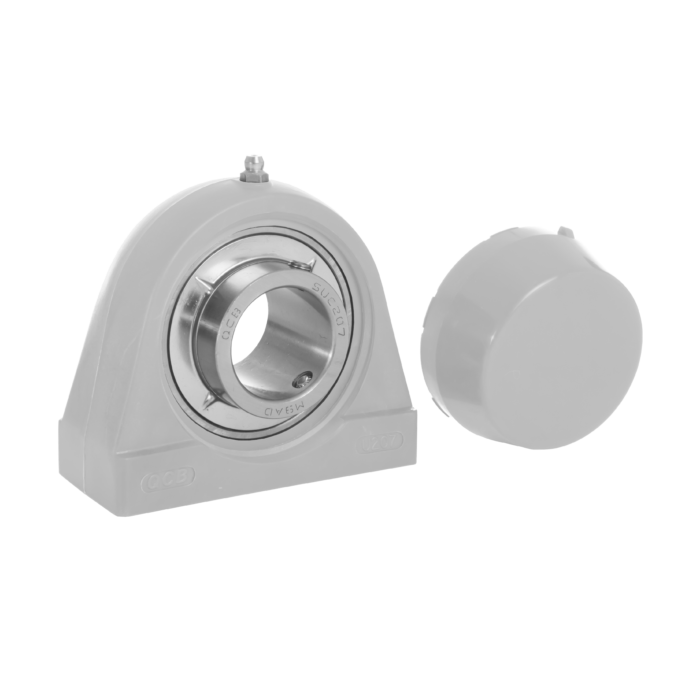

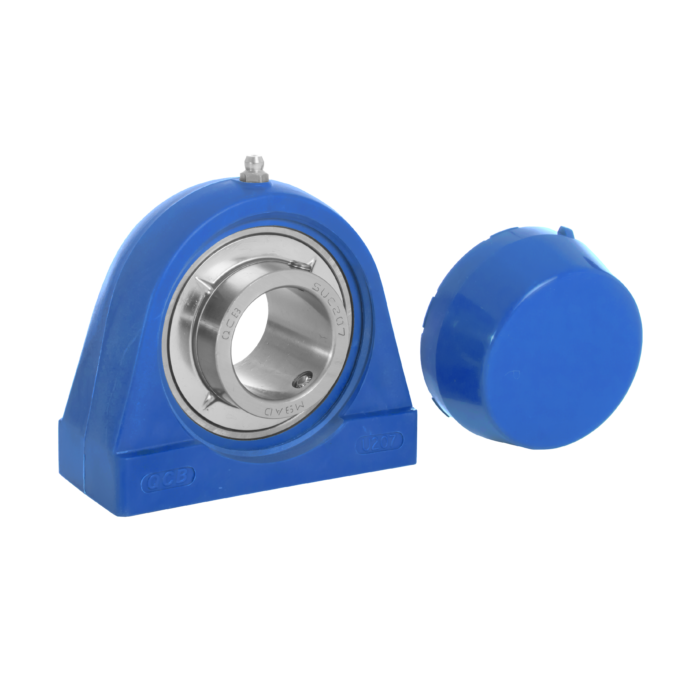

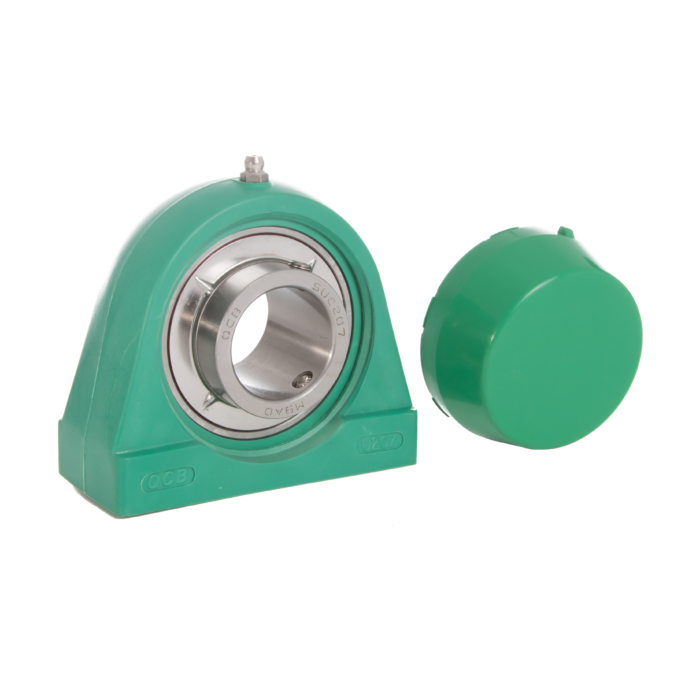

UCPL – Tapped base pillow blocks

QCB® Thermoplastic Short Base Pillow Block Housing Unit complete with a stainless steel insert filled with food-grade grease.

Interchangeable with cast iron units
Working temp range -35 to 102°C with excellent dimension stability
304 Stainless steel bolt inserts and grease nipples
Solid base to prevent dirt and bacterial buildup
FDA & FSDA-approved

We have vast stocks of inch and metric thermoplastics in all styles in our own QCB® brand.

Enquire Now

Got a project that demands precision?

Our engineers design, manufacture, and supply components to your exact specification. Contact us to discuss your project.

Get In Touch

Product Overview

The QCB® Thermoplastic range of housed bearing units consists of solid-base PBT thermoplastic housings matched with AISI 440 stainless steel inserts. Open and closed style end caps further prevent contaminant ingress.

Used in applications where product contamination is forbidden. QCB® Thermoplastic bearing units are available in a wide range of housing styles and with bore sizes from 12 mm to 50 mm or 1/2″ to 2″ from stock.

The housing offers a solid base and smooth finish to limit areas susceptible to bacterial growth.

To maximise corrosion resistance, not only is the bearing completely stainless steel, but so are the bolt inserts and grease nipples (suffix N). Inserts are filled with a high-quality (FDA-approved) food-grade grease (suffix 6)

UCPL – Tapped base pillow blocks are 2 bolt pillow blocks are similar style to Short block or tapped base units similar in dimension to the cast iron UCPA 200 or SNP Series to the cast iron UCP 200 or NP Series.

What are the typical applications for QCB Thermoplastics Bearing Units?

Food processing
Canning
Bottling and transmissions
Pharmaceutical
Chemical processing

Dimensions

Warning: Undefined array key "alt" in /home/nbcgroup/public_html/app/themes/wmm/template-parts/products/tab-repeater.php on line 208

Enquire Now

Enquire Now About UCPL - Tapped base pillow blocks

For any enquiries regarding UCPL - Tapped base pillow blocks, please complete our enquiry form, and a member of our technical team will respond promptly. Alternatively, you can reach out directly to one of our offices using the contact details here. Our specialists are ready to provide guidance and support tailored to your machinery and engineering needs.

NBC ref	Bearing bore		Dimensions					Weight	Bolt size k	Tightening torque
			a	b	h	m	w	Weight	Bolt size k	Tightening torque
	mm	inch	mm	mm	mm	mm	mm	kg		Nm
UCPL 201 SS N6	12	1/2	33.3	34.5	66	50.8	72.8	0.13	M8	18
UCPL 202 SS N6	15	9/16; 5/8	33.3	34.5	66	50.8	72.8	0.13	M8	18
UCPL 203 SS N6	17	11/16	33.3	34.5	66	50.8	72.8	0.13	M10	18
UCPL 204 SS N6	20	3/4	33.3	34.5	66	50.8	72.8	0.13	M10	18
UCPL 205 SS N6	25	13/16; 7/8; 15/16; 1	36.5	39.5	73.5	50.8	76.2	0.15	M10	25
UCPL 206 SS N6	30	1.1/16; 1.1/8; 1.3/16; 1.1/4	42.9	42.5	84	76.2	101	0.24	M10	30
UCPL 207 SS N6	35	1.1/4; 1.5/16; 1.3/8; 1.7/16	47.6	47.5	95	82.6	110	0.28	M12	35
UCPL 208 SS N6	40	1.1/2; 1.9/16	49.2	48	100.5	88.9	120	0.39	M12	45
UCPL 209 SS N6	45	1.5/8; 1.11/16; 1.3/4	54	50	108.5	95.3	124	0.47	M16	50
UCPL 210 SS N6	50	1.13/16; 1.7/8; 1.15/16; 2	57.2	54	115	101.6	135	0.56	M16	55
