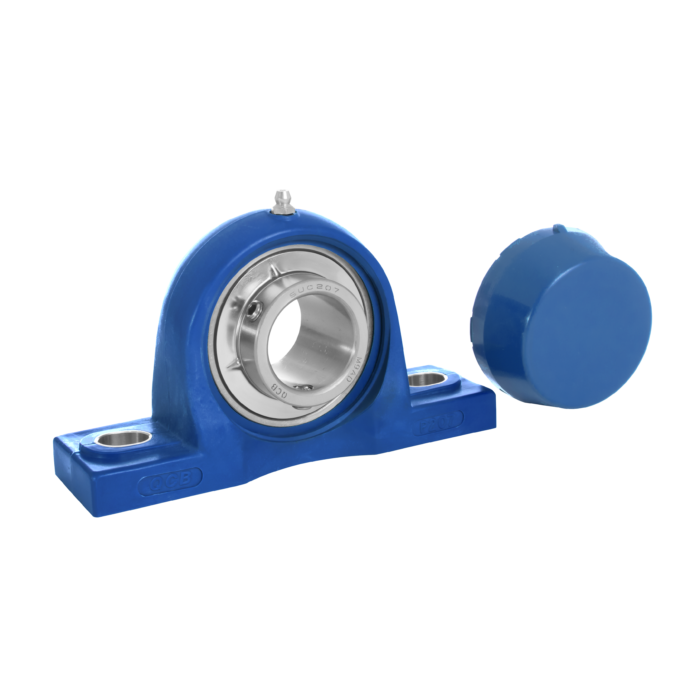

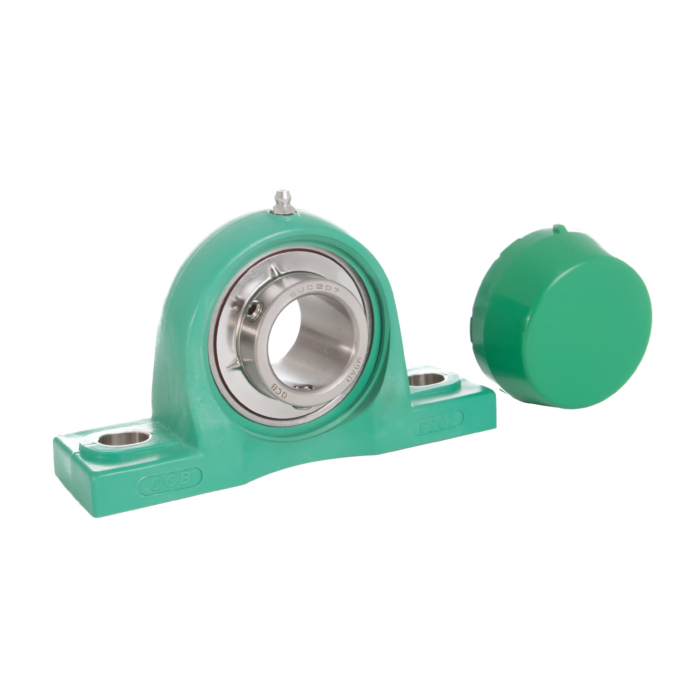

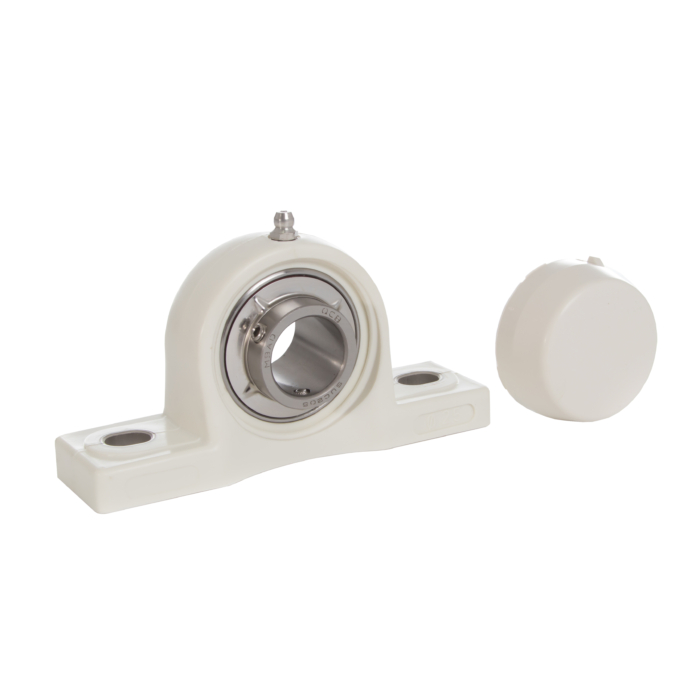

PPL – 2 bolt pillow blocks

QCB® Thermoplastic Pillow Block Housing Unit complete with a stainless steel insert filled with food-grade grease.

Interchangeable with cast iron units
Working temp range -35 to 102°C with excellent dimension stability
304 Stainless steel bolt inserts and grease nipples
Solid base to prevent dirt and bacterial buildup
FDA & FSDA-approved

We have vast stocks of inch and metric thermoplastics in all styles in our own QCB® brand.

Enquire Now

Got a project that demands precision?

Our engineers design, manufacture, and supply components to your exact specification. Contact us to discuss your project.

Get In Touch

Product Overview

The QCB® Thermoplastic range of housed bearing units consists of solid-base PBT thermoplastic housings matched with AISI 440 stainless steel inserts. Open and closed style end caps further prevent contaminant ingress.

Used in applications where product contamination is forbidden. QCB® Thermoplastic bearing units are available in a wide range of housing styles and with bore sizes from 12 mm to 50 mm or 1/2″ to 2″ from stock.

The housing offers a solid base and smooth finish to limit areas susceptible to bacterial growth.

To maximise corrosion resistance, not only is the bearing completely stainless steel, but so are the bolt inserts and grease nipples (suffix N). Inserts are filled with a high-quality (FDA-approved) food-grade grease (suffix 6)

PPL-2 bolt pillow blocks are similar to the cast iron UCP 200 or NP Series.

What are the typical applications for QCB thermoplastics bearing units?

Food processing
Canning
Bottling and transmissions
Pharmaceutical
Chemical processing

Dimensions

Warning: Undefined array key "alt" in /home/nbcgroup/public_html/app/themes/wmm/template-parts/products/tab-repeater.php on line 208

Enquire Now

Downloads

QCB Thermoplastic Bearing Units

Enquire Now

Enquire Now About PPL - 2 bolt pillow blocks

For any enquiries regarding PPL - 2 bolt pillow blocks, please complete our enquiry form, and a member of our technical team will respond promptly. Alternatively, you can reach out directly to one of our offices using the contact details here. Our specialists are ready to provide guidance and support tailored to your machinery and engineering needs.

NBC ref	Bearing Bore		Dimensions										Weight	Bolt Size	TighteningTorque Nm
	mm	Inch	H	L	J	A	N	N1	H1	H0	B	S
	mm	Inch	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
PPL-201	12	1/2	33.3	127	95	38	11	14	14.2	65.5	31	12.7	0.12	M10	18
PPL-202	15	9/16;5/8	33.3	127	95	38	11	14	14.2	65.5	31	12.7	0.12	M10	18
PPL-203	17	11/16	33.3	127	95	38	11	14	14.2	65.5	31	12.7	0.12	M10	18
PPL-204	20	3/4	33.3	127	95	38	11	14	14.2	65.5	31	12.7	0.12	M10	18
PPL-205	25	13/16;7/8;15/16;1	36.5	140.5	105	38	11	14	14.5	71	34	14.3	0.14	M10	25
PPL-206	30	1.1/16;1.1/8;1.3/16;1.1/4	42.9	163	119	46	14	18	17.8	84	38.1	15.9	0.2	M12	30
PPL-207	35	1.1/4;1.5/16;1..3/8;1.7/16	47.6	168	127	48	14	18	18	94.5	42.9	17.5	0.25	M12	35
PPL-208	40	1.1/2;1.9/16	49.2	184	137	54	14	18	19.5	99	42.9	19	0.36	M12	45
PPL-209	45	1.5/8;1.11/16;1.3/4	54	192	146	54	17	20	23	106	49.2	19	0.45	M16	50
PPL-210	50	1.13/16;1.7/8;1.15/16;2	57.2	206	159	60	17	20	23	114	51.6	19	0.55	M16	55
