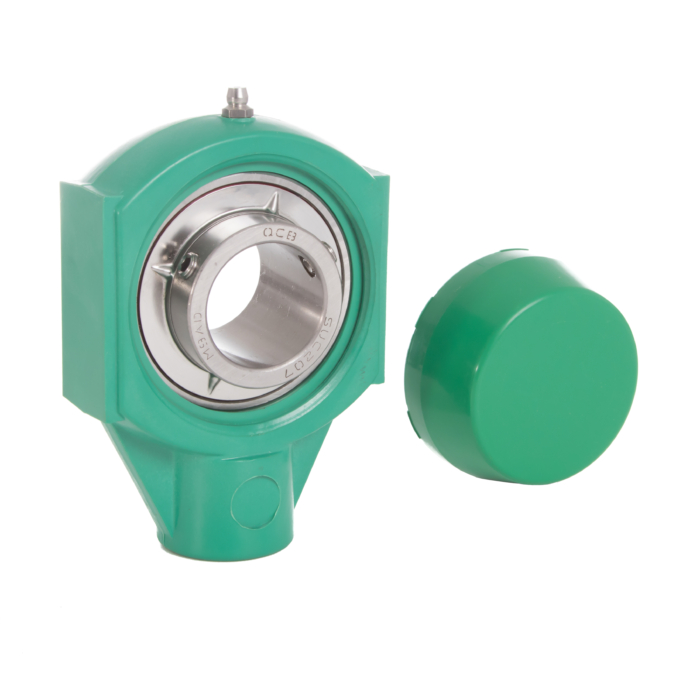

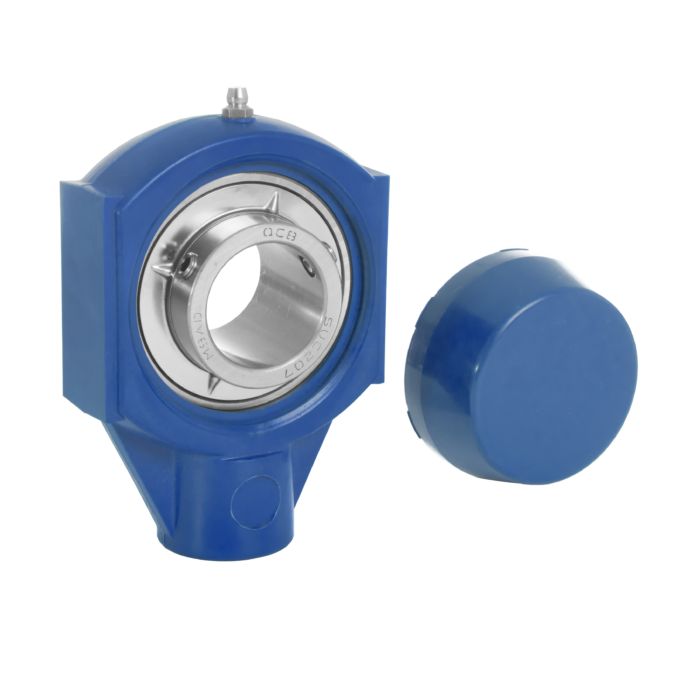

HPL – Hanger units
QCB® Thermoplastic Hanger Unit is a complete housing with a stainless steel insert filled with food-grade grease.
- Interchangeable with cast iron units
- Working temp range -35 to 102°C with excellent dimension stability
- 304 Stainless steel bolt inserts and grease nipples
- Solid base to prevent dirt and bacterial buildup
- FDA & FSDA-approved
We have vast stocks of inch and metric thermoplastics in all styles in our own QCB® brand.
Our engineers design, manufacture, and supply components to your exact specification. Contact us to discuss your project.
The QCB® Thermoplastic range of housed bearing units consists of solid-base PBT thermoplastic housings matched with AISI 440 stainless steel inserts. Open and closed style end caps further prevent contaminant ingress.
Used in applications where product contamination is forbidden. QCB® Thermoplastic bearing units are available in a wide range of housing styles and with bore sizes from 12 mm to 50 mm or 1/2″ to 2″ from stock.
The housing offers a solid base and smooth finish to limit areas susceptible to bacterial growth.
To maximise corrosion resistance, not only is the bearing completely stainless steel, but so are the bolt inserts and grease nipples (suffix N). Inserts are filled with a high-quality (FDA-approved) food-grade grease (suffix 6)
HPL Hanger units are similar in style to short block or tapped base units similar in dimension to the cast iron UCPA 200 or SNP Series.
What are the typical applications for QCB thermoplastics bearing units?
-
- Food processing
- Canning
- Bottling and transmissions
- Pharmaceutical
- Chemical processing
Warning: Undefined array key "alt" in /home/nbcgroup/public_html/app/themes/wmm/template-parts/products/tab-repeater.php on line 208
| NBC ref | Bearing bore | Dimensions | Weight | |||||||
| a | c | h | m | s | t | w | ||||
| mm | inch | mm | mm | mm | mm | mm | mm | mm | kg | |
| HPL 201 SS N6 | 12 | 1/2 | 99 | 27.5 | 63.5 | 65 | M16 | 36 | 47 | 0.15 |
| HPL 202 SS N6 | 15 | 9/16; 5/8 | 99 | 27.5 | 63.5 | 65 | M16 | 36 | 47 | 0.15 |
| HPL 203 SS N6 | 17 | 11/16 | 99 | 27.5 | 63.5 | 65 | M16 | 36 | 47 | 0.15 |
| HPL 204 SS N6 | 20 | 3/4 | 99 | 27.5 | 63.5 | 65 | M16 | 36 | 47 | 0.15 |
| HPL 205 SS N6 | 25 | 13/16; 7/8; 15/16; 1 | 99 | 27.5 | 63.5 | 74 | M16 | 36 | 47 | 0.16 |
| HPL 206 SS N6 | 30 | 1.1/16; 1.1/8; 1.3/16; 1.1/4 | 125 | 34.5 | 76 | 90 | M16 | 40 | 63 | 0.21 |
| HPL 207 SS N6 | 35 | 1.1/4; 1.5/16; 1.3/8; 1.7/16 | 125 | 34.5 | 76 | 90 | M16 | 40 | 63 | 0.25 |
| HPL 208 SS N6 | 40 | 1.1/2; 1.9/16 | 140 | 34.5 | 85 | 100 | M16 | 40 | 80 | 0.36 |
| HPL 209 SS N6 | 45 | 1.5/8; 1.11/16; 1.3/4 | 149 | 40 | 90 | 110 | M20 | 50 | 85 | 0.45 |
| HPL 210 SS N6 | 50 | 1.13/16; 1.7/8; 1.15/16; 2 | 149 | 40 | 90 | 110 | M20 | 50 | 85 | 0.49 |
For any enquiries regarding HPL - Hanger units, please complete our enquiry form, and a member of our technical team will respond promptly. Alternatively, you can reach out directly to one of our offices using the contact details here. Our specialists are ready to provide guidance and support tailored to your machinery and engineering needs.
