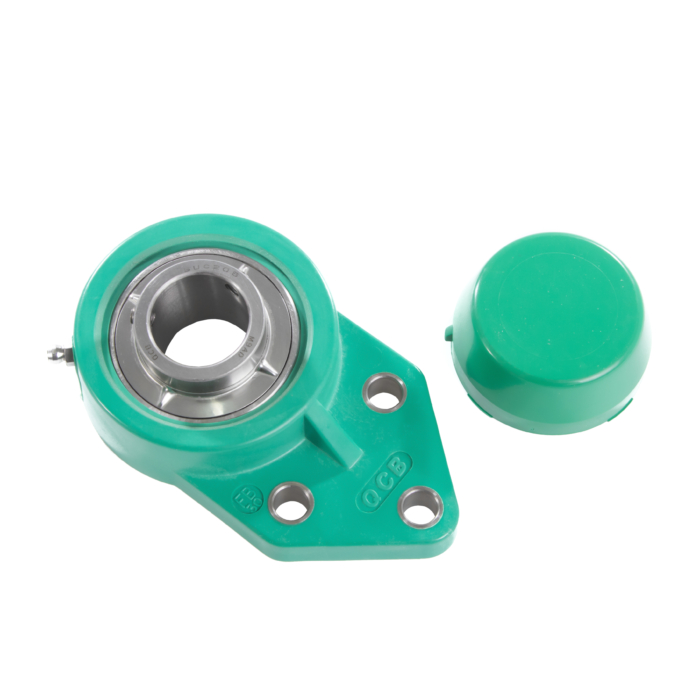

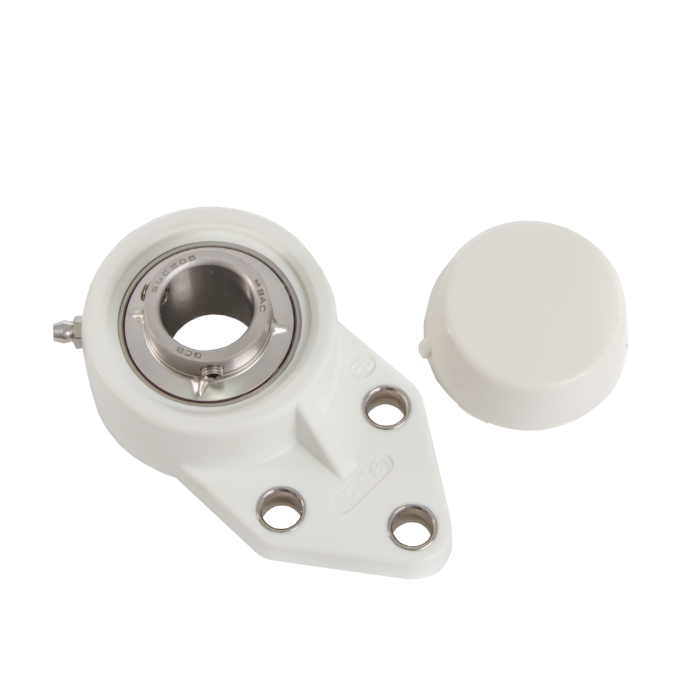

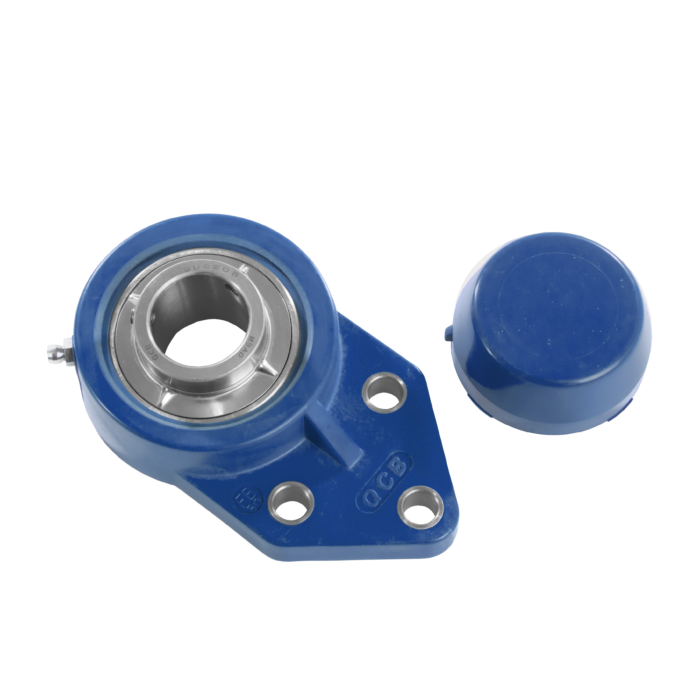

FBL – Flange bracket units
QCB® Thermoplastic flange bracket housing unit complete with a stainless steel insert filled with food-grade grease.
- Interchangeable with cast iron units
- Working temp range -35 to 102°C with excellent dimension stability
- 304 Stainless steel bolt inserts and grease nipples
- Solid base to prevent dirt and bacterial buildup
- FDA & FSDA-approved
We have vast stocks of inch and metric thermoplastics in all styles in our own QCB® brand.
Our engineers design, manufacture, and supply components to your exact specification. Contact us to discuss your project.
The QCB® Thermoplastic range of housed bearing units consists of solid-base PBT thermoplastic housings matched with AISI 440 stainless steel inserts. Open and closed style end caps further prevent contaminant ingress.
Used in applications where product contamination is forbidden. QCB® Thermoplastic bearing units are available in a wide range of housing styles and with bore sizes from 12 mm to 50 mm or 1/2″ to 2″ from stock.
The housing offers a solid base and smooth finish to limit areas susceptible to bacterial growth.
To maximise corrosion resistance, not only is the bearing completely stainless steel, but so are the bolt inserts and grease nipples (suffix N). Inserts are filled with a high-quality (FDA-approved) food-grade grease (suffix 6)
FBL Flange bracket units are similar in style to the cast iron UCFB Series.
What are the typical applications for QCB thermoplastics bearing units?
- Food processing
- Canning
- Bottling and transmissions
- Pharmaceutical
- Chemical processing
Warning: Undefined array key "alt" in /home/nbcgroup/public_html/app/themes/wmm/template-parts/products/tab-repeater.php on line 208
| NBC ref | Bearing bore | Dimensions | Weight | |||||||||||
| a | b | c | d | e | f | g | h | i | j | k | ||||
| mm | inch | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | |
| FBL 201 SS N6 | 12 | 1/2 | 76.2 | 62 | 38.1 | 42.9 | 33.7 | 22.2 | 11.4 | 108 | 63.5 | 26.5 | 10.7 | 0.1 |
| FBL 202 SS N6 | 15 | 9/16; 5/8 | 76.2 | 62 | 38.1 | 42.9 | 33.7 | 22.2 | 11.4 | 108 | 63.5 | 26.5 | 10.7 | 0.1 |
| FBL 203 SS N6 | 17 | 11/16 | 76.2 | 62 | 38.1 | 42.9 | 33.7 | 22.2 | 11.4 | 108 | 63.5 | 26.5 | 10.7 | 0.1 |
| FBL 204 SS N6 | 20 | 3/4 | 76.2 | 62 | 38.1 | 42.9 | 33.7 | 22.2 | 11.4 | 108 | 63.5 | 26.5 | 10.7 | 0.1 |
| FBL 205 SS N6 | 25 | 13/16; 7/8; 15/16; 1 | 85.7 | 63.5 | 41.3 | 46 | 41.2 | 28.6 | 11.4 | 120.6 | 70 | 32 | 10.7 | 0.12 |
| FBL 206 SS N6 | 30 | 1.1/16; 1.1/8; 1.3/16; 1.1/4 | 96.5 | 76 | 47.6 | 52.4 | 41.5 | 31.8 | 13.3 | 138.5 | 83 | 34 | 10.7 | 0.16 |
| FBL 207 SS N6 | 35 | 1.1/4; 1.5/16; 1.3/8; 1.7/16 | 109.5 | 89 | 50.8 | 60.3 | 47.1 | 31.8 | 16.1 | 157 | 95 | 36.5 | 13.1 | 0.18 |
For any enquiries regarding FBL - Flange bracket units, please complete our enquiry form, and a member of our technical team will respond promptly. Alternatively, you can reach out directly to one of our offices using the contact details here. Our specialists are ready to provide guidance and support tailored to your machinery and engineering needs.
