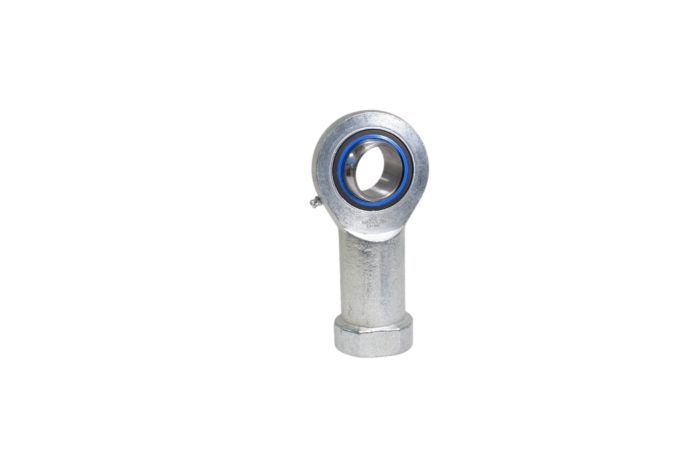

Spherical Plain Bearings & Rod Ends
Whereas Rod Ends contain a spherical plain bearing encased in a rod end housing where the head resembles a needle eye, the other half is threaded. Often found on the end of a hydraulic or pneumatic piston used to connect a cylinder to another component. Rod Ends provide and assist with motion transfer, supporting radial load, whilst also allowing for angular movements and misalignment.
- Hydraulic Rod Ends – with Internal thread
- Hydraulic Rod Ends – with circular and rectangular welding face
- Rod Ends – requiring maintenance or maintenance-free
- Spherical Plain Bearings – requiring maintenance (steel to steel)
- Spherical Plain Bearings – maintenance-free (sliding contact surfaces: hard chromium steel/PTFE)
- Spherical Plain Bearings Stainless Steel – maintenance-free (sliding contact surfaces: corrosion-resistant steel/PTFE)
Our engineers design, manufacture, and supply components to your exact specification. Contact us to discuss your project.
Rod ends and spherical plain bearings are essential components for applications requiring reliable articulation, alignment compensation, and load transfer in dynamic systems.
Designed to accommodate angular misalignment and oscillating movements.
What Are Rod Ends?
Rod ends—also known as heim joints—consist of a spherical bearing housed within a threaded body.
This design allows for smooth rotational movement while maintaining strong mechanical linkage between connected components.
What Are Spherical Plain Bearings?
Spherical plain bearings are designed to handle high radial and axial loads while allowing angular misalignment between shaft and housing. Unlike rolling-element bearings, they operate with sliding contact surfaces, making them particularly suitable for heavy-duty and shock-loaded applications.
What are the typical applications for Rod Ends and Spherical Plain Bearings?
- Conveyor systems
- Mining Machinery
- Agricultural Equipment
- Steering Linkages
- Packaging Machinery
We have vast stocks of Rod End and Spherical Plain Bearings of all styles in our own QCB® brand, supplemented by most major brands.
Our extensive interchange database means we can offer a direct equivalent in most cases.
For any enquiries regarding Spherical Plain Bearings & Rod Ends, please complete our enquiry form, and a member of our technical team will respond promptly. Alternatively, you can reach out directly to one of our offices using the contact details here. Our specialists are ready to provide guidance and support tailored to your machinery and engineering needs.
