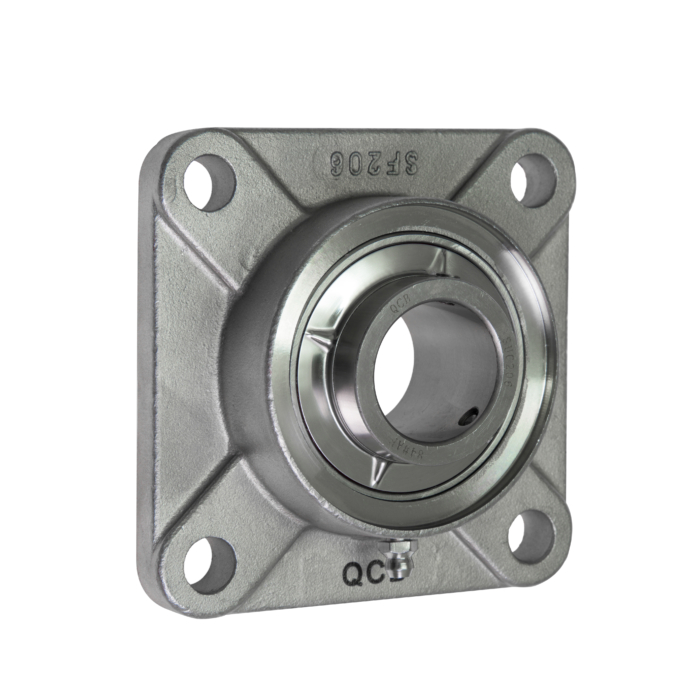

SSUCF Series
QCB® Stainless Steel 4 Bolt Square Block Housing Unit is complete with a stainless steel insert filled with food-grade grease.
- Interchangeable with cast iron units
- Working temp range -35 to 102°C with excellent dimension stability
- 304 Stainless steel bolt inserts and grease nipples
- FDA & FSDA-approved
Shaft sizes 55mm – 75mm are available to special order in OEM quantities – ask for details.
Our engineers design, manufacture, and supply components to your exact specification. Contact us to discuss your project.
The QCB® range of housed Stainless bearing units consists of solid-base housing in AISI 304 stainless steel matched with AISI 440 stainless steel inserts. Open and closed style end caps further prevent contaminant ingress.
Used in applications where product contamination is forbidden. QCB® Stainless bearing units are available in a range of housing styles and with bore sizes from 12 mm to 50 mm or 1/2″ to 2″ from stock.
The housing offers a solid base and smooth finish to limit areas susceptible to bacterial growth.
Open and closed shaft end covers to match are available to fit one or both sides of the housings (as applicable) to prevent contamination entry, even when the machinery is subject to high-pressure wash-down.
QCB® Stainless inserts are factory-filled with FDA-approved food grease
SSUCF Square 4-bolt flange black housings are similar to the cast iron UCF 200 or SF Series.
What are the typical applications for QCB Stainless bearing units?
- Food processing
- Canning
- Bottling and transmissions
- Pharmaceutical
- Chemical processing
Warning: Undefined array key "alt" in /home/nbcgroup/public_html/app/themes/wmm/template-parts/products/tab-repeater.php on line 208
| QCB ref | Dimensions | Bolt size | |||||||||||
| a | e | g | L | i | z | s | |||||||
| mm | inch | mm | mm | mm | mm | mm | mm | mm | kg | ||||
| SSUCF 201 SB | 12 | 1/2 | 86 | 64 | 12 | 25.5 | 15 | 33.3 | 12 | M10 | 0.58 | ||
| SSUCF 202 SB | 15 | 5/8 | |||||||||||
| SSUCF 203 SB | 17 | 11/16 | |||||||||||
| SSUCF 204 SB | 20 | 3/4 | |||||||||||
| SSUCF 205 SB | 25 | 7/8 | 15/16 | 1 | 95 | 70 | 14 | 27 | 16 | 35.8 | 12 | M10 | 0.83 |
| SSUCF 206 SB | 30 | 1.3/16 | 1.1/4 | 108 | 83 | 14 | 31 | 18 | 40.2 | 12 | M10 | 1.1 | |
| SSUCF 207 SB | 35 | 1.1/4 | 1.3/8 | 1.7/16 | 116 | 92 | 15.5 | 34 | 19 | 44.4 | 14 | M12 | 1.6 |
| SSUCF 208 SB | 40 | 1.1/2 | 129 | 102 | 15.5 | 36 | 21 | 51.2 | 16 | M14 | 1.9 | ||
| SSUCF 209 SB | 45 | 1.5/8 | 1.3/4 | 136.5 | 105 | 17.5 | 38 | 22 | 52.2 | 16 | M14 | 2.4 | |
| SSUCF 210 SB | 50 | 1.7/8 | 1.15/16 | 2 | 142.5 | 111 | 17.5 | 40 | 22 | 54.6 | 16 | M14 | 2.6 |
| SSUCF 211 SB | 55 | 2 | 2.1/8 | 161.5 | 130 | 19.5 | 43 | 25 | 58.4 | 19 | M16 | 3.7 | |
| SSUCF 212 SB | 60 | 2.1/4 | 2.3/8 | 175 | 143 | 19.5 | 48 | 29 | 68.7 | 19 | M16 | 4.3 | |
| SSUCF 213 SB | 65 | 2.1/2 | 187 | 149 | 21.5 | 49.5 | 30 | 69.7 | 19 | M16 | 5.2 | ||
| SSUCF 214 SB | 70 | 2.3/4 | 193 | 152 | 24 | 53.5 | 31 | 75.4 | 19 | M16 | 5.8 | ||
| SSUCF 215 SB | 75 | 3 | 199 | 159 | 22.5 | 55.5 | 34 | 78.5 | 19 | M16 | 6.2 | ||
| Non stock sizes are available to order | |||||||||||||
Warning: Undefined array key "alt" in /home/nbcgroup/public_html/app/themes/wmm/template-parts/products/tab-repeater.php on line 208
SUC insert limiting speeds
The limiting speed of any ball bearing insert is, for practical purposes, determined by the quality of fit between the inner ring and the shaft.
| QCB Ref | Shaft tolerance | |||
| j7 | h7 | h8 | h9 | |
| SUC 201 | 6700 | 5300 | 3800 | 1400 |
| SUC 202 | 6700 | 5300 | 3800 | 1400 |
| SUC 203 | 6700 | 5300 | 3800 | 1400 |
| SUC 204 | 6000 | 4800 | 3400 | 1200 |
| SUC 205 | 5600 | 4000 | 3000 | 1000 |
| SUC 206 | 4500 | 3400 | 2400 | 850 |
| SUC 207 | 4000 | 3000 | 2000 | 750 |
| SUC 208 | 3600 | 2600 | 1900 | 670 |
| SUC 209 | 3200 | 2400 | 1700 | 600 |
| SUC 210 | 3000 | 2200 | 1600 | 560 |
| SUC 211 | 2600 | 2000 | 1400 | 500 |
| SUC 212 | 2400 | 1800 | 1200 | 450 |
Setscrew tightening torque
The 2 setscrews should be tightened to the appropriate torque figure. Over tightening may result in a fracture developing in the inner ring.
Should the axial load be high, a small dimple in the shaft may improve the locking effect. For best effect the bearings should be mounted against a shoulder in the shaft.
| Size | Torque (Nm) |
| M6 | 4 |
| M8 | 8 |
| M10 | 15 |
Materials
QCB® Stainless Steel bearing units are made in high quality stainless steel for maximum corrosion resistance.
All pillow blocks and flange units have a solid base and smooth exterior surface restrict the growth of bacteria.
| Part | Material | ||
| bearing insert | Inner and outer rings | Stainless steel | AISI 440C |
| Balls | AISI 440 C | ||
| Cage/retainer | AISI 321 | ||
| Flinger seal | AISI 321 | ||
| Set screws | SU 304 | ||
| Rubber seals | Nitrile rubber | ||
| Housing | Housing body | Stainless steel | AISI 440 C |
| Grease nipple | AISI 304 |
Food Grade Lubricant
QCB® Stainless Steel SUC inserts are lubricated with KLUBER PARALIQ GA343 grease
| ndm value | Environmental conditions | Temperature | Relubrication interval |
| < 40 000 | Clean | -15 to +65 °C | 6 – 12 months |
| +65 to +100 °C | 2 – 6 months | ||
| < 70 000 | Clean | -15 to +65 °C | 2 – 6 months |
| +65 to +100 °C | 1 month | ||
| Any | Dirty / Water splash | Any | 1 month |
Operating temperature range
QCB® Stainless Steel inserts can operate in environments from -30 to + 120C
For any enquiries regarding SSUCF Series, please complete our enquiry form, and a member of our technical team will respond promptly. Alternatively, you can reach out directly to one of our offices using the contact details here. Our specialists are ready to provide guidance and support tailored to your machinery and engineering needs.
