UCFL 200 Series

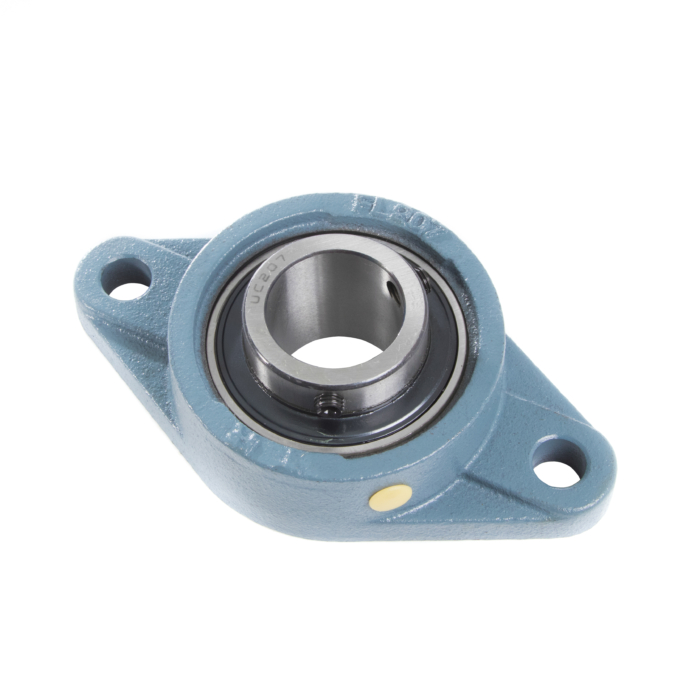

The UCFL 2 bolt flange unit (RHP SFT and MSFT series) consists of a bearing insert with a spherical outer diameter in a cast iron housing. The bearing is usually fixed to the shaft by means of two set screws in the extended portion of the inner ring.

Typical TR references

UCFL / UKFL / UCFLX

Typical NSK-RHP references

SFT / MSFT/ LFTC

Typical SKF references

FYT/ FYTB/ FYTJ

Enquire Now

Got a project that demands precision?

Our engineers design, manufacture, and supply components to your exact specification. Contact us to discuss your project.

Get In Touch

Product Overview

Bearing units consist of series of metric or imperial bore wide inner ring sealed ball bearings with spherical outer diameter inserted in a wide range of pressed steel and cast iron housings which are able to accommodate static misalignment.

Mounted bearing units are manufactured in a variety of bore sizes ranging from 12 -100mm or 1/2″ – 4″ with a variety of locking mechanisms and seals.

Special types for agricultural use are also manufactured.

Pressed steel housing styles cover a range of round and triangular flange units as well as pillow blocks.

More popular are the Cast Iron housing styles, which include long- and short-base pillow blocks, 2- and 4-bolt flange units, take-up units, flange cartridge units and hanger units.

While most inserts feature a standard lip seal with integral flinger, a triple lip seal with flinger is recommended for use in contaminated environments.

Various locking methods are available, including set screw locking, eccentric collars and even taper lock sleeves.

What are the Typical Uses for Bearing Units?

Quarry and Mining
Tillage Equipment
Industrial Machinery
Conveyor Systems and Material Handling

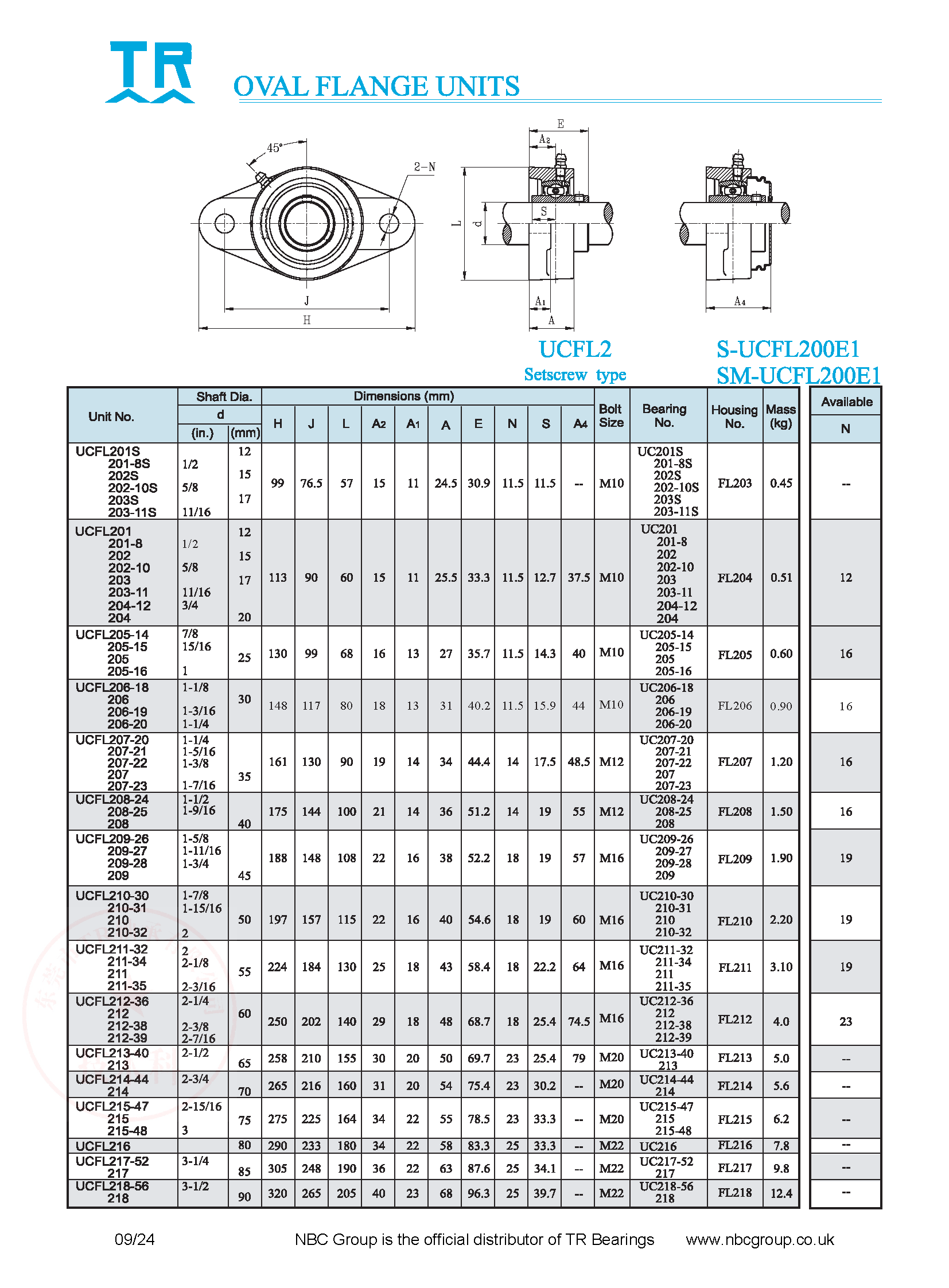

Dimensions

Warning: Undefined array key "alt" in /home/nbcgroup/public_html/app/themes/wmm/template-parts/products/tab-repeater.php on line 208

Unit No.	Shaft Dia		Dimensions (mm)										Bolt size	Bearing No.	Housing No.	Mass (kg)
	d		H	J	L	A2	A1	A	E	N	S	A4
	(in.)	(mm)
UCFL201S		12	99	76.5	57	15	11	24.5	30.9	11.5	11.5	—	M10	UC201S	FL203	0.37
201-8S	1/2													201-8S
202S		15												202S		0.36
202-10S	5/8													202-10S
203S		17												203S		0.35
203-11S	11/16													203-11S
UCFL201		12	113	90	60	15	11	25.5	33.3	11.5	12.7	37.5	M10	UC201	FL204	0.47
201-8	1/2													201-8
202		15												202		0.45
202-10	5/8													202-10
203		17												203		0.44
203-11	11/16													203-11
204-12	3/4													204-12
204		20												204		0.42
UCFL205-14	7/8		130	99	68	16	13	27	35.7	11.5	14.3	40	M10	UC205-14	FL205
205-15	15/16													205-15
205		25												205		0.61
205-16	1													205-16
UCFL206-18	1-1/8		148	117	80	18	13	31	40.2	11.5	15.9	44	M10	UC206-18	FL206
206		30												206		0.9
206-19	1-3/16													206-19
206-20	1-1/4													206-20
UCFL207-20	1-1/4		161	130	90	19	14	34	44.4	14	17.5	48.5	M12	UC207-20	FL207
207-21	1-5/16													207-21
207-22	1-3/8													207-22
207		35												207		1.21
207-23	1-7/16													207-23
UCFL208-24	1-1/2		175	144	100	21	14	36	51.2	14	19	55	M12	UC208-24	FL208
208-25	1-9/16													208-25
208		40												208		1.55
UCFL209-26	1-5/8		188	148	108	22	16	38	52.2	18	19	57	M16	UC209-26	FL209
209-27	1-11/16													209-27
209-28	1-3/4													209-28
209		45												209		1.87
UCFL210-30	1-7/8		197	157	115	22	16	40	54.6	18	19	60	M16	UC210-30	FL210
210-31	1-15/16													210-31
210		50												210		2.16
210-32	2													210-32
UCFL211-32	2		224	184	130	25	18	43	58.4	18	22.2	64	M16	UC211-32	FL211
211-34	2-1/8													211-34
211		55												211		2.89
211-35	2-3/16													211-35
UCFL212-36	2-1/4		250	202	140	29	18	48	68.7	18	25.4	74.5	M16	UC212-36	FL212
212		60												212		3.75
212-38	2-3/8													212-38
212-39	2-7/16													212-39
UCFL213-40	2-1/2		258	210	155	30	20	50	69.7	23	25.4	79	M20	UC213-40	FL213
213		65												213		4.68
UCFL214-44	2-3/4		265	216	160	31	20	54	75.4	23	30..2	—	M20	UC214-44	FL214
214		70												214		5.26
UCFL215-47	2-15/16		275	225	164	34	22	55	78.5	23	33.3		M20	UC215-47	FL215
215		75										—		215
215-48	3													215-48		5.38
UCFL216		80	290	233	180	34	22	58	83.3	25	33.3	—	M22	UC216	FL216	6.76
UCFL217-52	3-1/4		305	248	190	36	22	63	87.6	25	34.1	—	M22	UC217-52	FL217
217		85												217		8.48
UCFL218-56	3-1/2		320	265	205	40	23	68	96.3	25	39.7	—	M22	UC218-56	FL218
218		90												218		10.3
