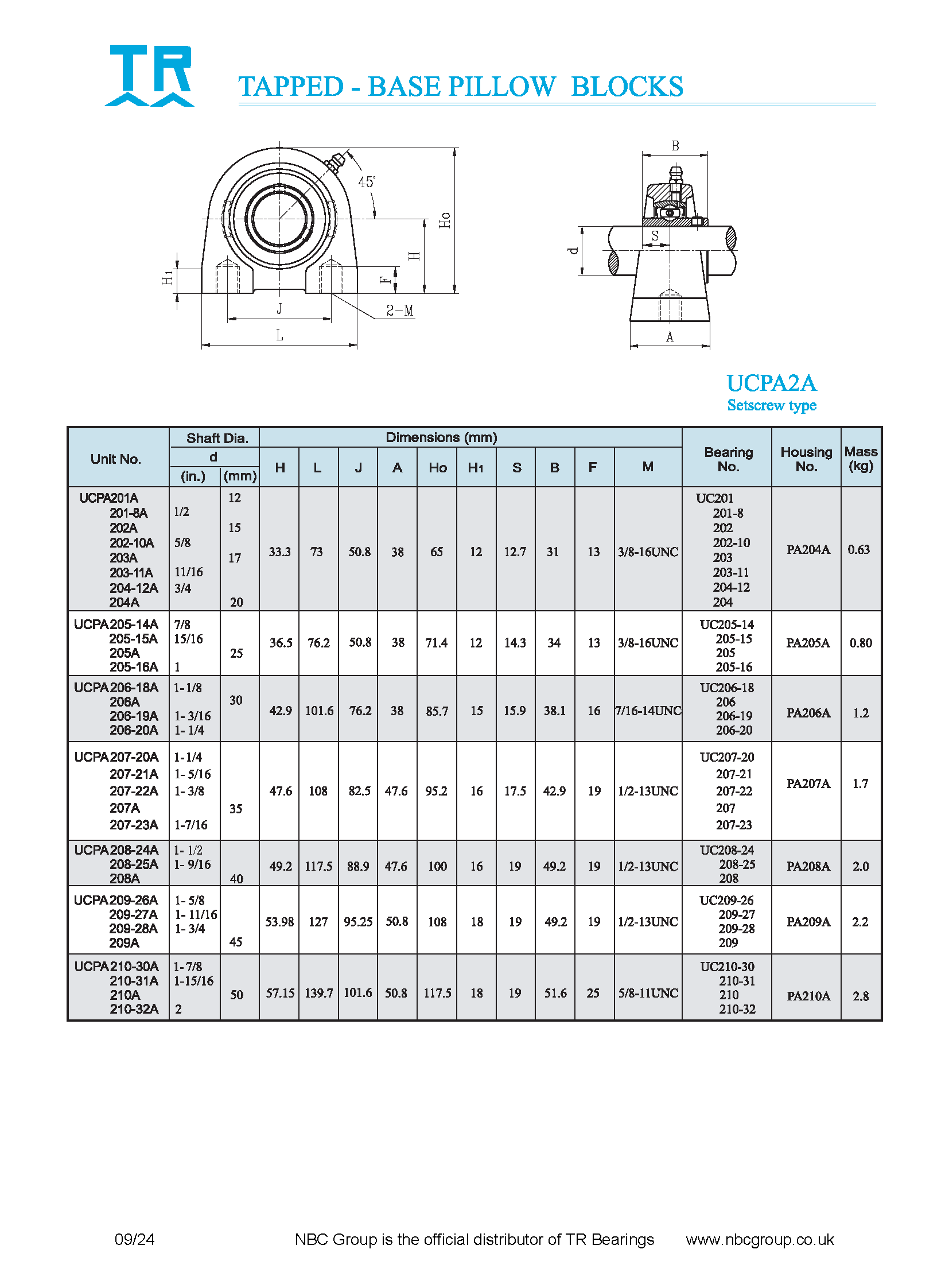

UCPA 200A Series
The UCPA2A series (RHP CNP Series) has UNC mounting threads in the shortened base. The bearing is usually fixed to the shaft by means of two set screws in the extended portion of the inner ring.
Typical TR references
UCP / UKP / UCPX/ UCPA
Typical NSK-RHP references
NP / SL / MP / SNP / CNP
Typical SKF references
SY / SYJ / SYH / SYM / SYF
Our engineers design, manufacture, and supply components to your exact specification. Contact us to discuss your project.
The UCPA2A series (RHP CNP Series) has UNC mounting threads in the shortened base. The bearing is usually fixed to the shaft by means of two set screws in the extended portion of the inner ring.
Bearing units consist of series of metric or imperial bore wide inner ring sealed ball bearings with spherical outer diameter inserted in a wide range of pressed steel and cast iron housings which are able to accommodate static misalignment.
Mounted bearing units are manufactured in a variety of bore sizes ranging from 12 -100mm or 1/2″ – 4″ with a variety of locking mechanisms and seals.
Special types for agricultural use are also manufactured.
Pressed steel housing styles cover a range of round and triangular flange units as well as pillow blocks.
More popular are the Cast Iron housing styles, which include long and short base pillow blocks, 2- and 4-bolt flange units, take-up units, flange cartridge units and hanger units.
While most inserts feature a standard lip seal with integral flinger, a triple lip seal with flinger is recommended for use in contaminated environments.
Various locking methods are available, including set screw locking, eccentric collar and even taper lock sleeve.
What are the Typical Uses for Bearing Units?
- Quarry and Mining
- Tillage Equipment
- Industrial Machinery
- Conveyor Systems and Material Handling
Warning: Undefined array key "alt" in /home/nbcgroup/public_html/app/themes/wmm/template-parts/products/tab-repeater.php on line 208
| Unit No. | Shaft Dia | Dimensions (mm) | Bearing No. | Housing No. | Mass (kg) | ||||||||||
| d | H | L | J | A | H0 | H1 | S | B | F | M | |||||
| (in.) | (mm) | ||||||||||||||
| UCPA 201A | 12 | 33.3 | 73 | 50.8 | 38 | 65 | 12 | 12.7 | 31 | 13 | M8 | UC201 | PA204A | 0.65 | |
| 201-8A | 1/2 | 201-8 | |||||||||||||
| 202A | 15 | 202 | 0.63 | ||||||||||||
| 202-10A | 5/8 | 202-10 | |||||||||||||
| 203A | 17 | 203 | 0.62 | ||||||||||||
| 203-11A | 11/16 | 203-11 | |||||||||||||
| 204-12A | 3/4 | 204-12 | |||||||||||||
| 204A | 20 | 204 | 0.6 | ||||||||||||
| UCPA 205-14A | 7/8 | 36.5 | 76.2 | 50.8 | 38 | 71.4 | 12 | 14.3 | 34 | 13 | M10 | UC205-14 | PA205A | ||
| 205-15A | 15/16 | 205-15 | |||||||||||||
| 205A | 25 | 205 | 0.71 | ||||||||||||
| 205-16A | 1 | 205-16 | |||||||||||||
| UCPA 206-18A | 1-1/8 | 42.9 | 101.6 | 76.2 | 38 | 85.7 | 15 | 15.9 | 38.1 | 16 | M10 | UC206-18 | PA206A | ||
| 206A | 30 | 206 | 1.15 | ||||||||||||
| 206-19A | 1-13/16 | 206-19 | |||||||||||||
| 206-20A | 1-1/4 | 206-20 | |||||||||||||
| UCPA 207-20A | 1-1/4 | 47.6 | 108 | 82.5 | 47.6 | 95.2 | 16 | 17.5 | 42.9 | 19 | M10 | UC207-20 | PA207A | ||
| 207-21A | 1-5/16 | 207-21 | |||||||||||||
| 207-22A | 1-3/8 | 207-22 | |||||||||||||
| 207A | 35 | 207 | 1.64 | ||||||||||||
| 207-23A | 1-7/16 | 207-23 | |||||||||||||
| UCPA 208-24A | 1-1/2 | 49.2 | 117.5 | 88.9 | 47.6 | 100 | 16 | 19 | 49.2 | 19 | M12 | UC208-24 | PA208A | ||
| 208-25A | 1-9/16 | 208-25 | |||||||||||||
| 208A | 40 | 208 | 1.78 | ||||||||||||
| UCPA 209-26A | 1-5/8 | 53.98 | 127 | 95.25 | 50.8 | 108 | 18 | 19 | 49.2 | 19 | M12 | UC209-26 | PA209A | ||
| 209-27A | 1-11/16 | 209-27 | |||||||||||||
| 209-28A | 1-3/4 | 209-28 | |||||||||||||
| 209A | 45 | 209 | 2.17 | ||||||||||||
| UCPA 210-30A | 1-7/8 | 57.15 | 139.7 | 101.6 | 50.8 | 117.5 | 18 | 19 | 51.6 | 25 | M16 | UC210-30 | PA210A | ||
| 210-31A | 1-15/16 | 210-31 | |||||||||||||
| 210A | 50 | 210 | 2.68 | ||||||||||||
| 210-32A | 2 | 210-32 | |||||||||||||
