UCP 300 Series

The UCP 300 Series pillow block consists of a UC 300 Series bearing insert with a spherical outer diameter in a 2 bolt cast iron housing. The bearing is usually fixed to the shaft by means of two set screws in the extended portion of the inner ring.

Typical TR references

UCP / UKP / UCPX/ UCPA

Typical NSK-RHP references

NP / SL / MP / SNP / CNP

Typical SKF references

SY / SYJ / SYH / SYM / SYF

Enquire Now

Got a project that demands precision?

Our engineers design, manufacture, and supply components to your exact specification. Contact us to discuss your project.

Get In Touch

Product Overview

The UCP 300 Series pillow block consists of a UC 300 Series bearing insert with a spherical outer diameter in a 2 bolt cast iron housing.

Bearing units consist of series of metric or imperial bore wide inner ring sealed ball bearings with spherical outer diameter inserted in a wide range of pressed steel and cast iron housings which are able to accommodate static misalignment.

Mounted bearing units are manufactured in a variety of bore sizes ranging from 12 -100mm or 1/2″ – 4″ with a variety of locking mechanisms and seals.

Special types for agricultural use are also manufactured.

Pressed steel housing styles cover a range of round and triangular flange units as well as pillow blocks.

More popular are the Cast Iron housing styles, which include long and short base pillow blocks, 2- and 4-bolt flange units, take-up units, flange cartridge units and hanger units.

While most inserts feature a standard lip seal with integral flinger, a triple lip seal with flinger is recommended for use in contaminated environments.

Various locking methods are available, including set screw locking, eccentric collar and even taper lock sleeve.

What are the Typical Uses for Bearing Units?

Quarry and Mining
Tillage Equipment
Industrial Machinery
Conveyor Systems and Material Handling

Dimensions

Warning: Undefined array key "alt" in /home/nbcgroup/public_html/app/themes/wmm/template-parts/products/tab-repeater.php on line 208

Unit No.	Shaft Dia		Dimensions (mm)										Bolt size	Bearing No.	Housing No.	Mass (kg)
	d		H	L	J	A	N	N1	H1	H0	S	B
	(in.)	(mm)
UCP 305-14	7/8		45	173	132	45	17	20	15	85	15	38	M14	UC305-14	P305
305-15	15/16													305-15
305		25												305		1.46
305-16	1													305-16
UCP 306-18	1-1/8		50	180	140	49	17	20	16	95	17	43	M14	UC306-18	P306
306		30												306		1.8
306-19	1-3/16													306-19
UCP 307-20	1-1/4		56	210	160	56	17	25	19	106	19	48	M14	UC307-20	P307
307-21	1-5/16													307-21
307-22	1-3/8													307-22
307		35												307		2.98
UCP 308-24	1-1/2		60	218	170	62	18	25	19	116	19	52	M14	UC308-24	P308
308-25	1-9/16													308-25
308		40												308		3.33
UCP 309-26	1-5/8		67	244	190	66	20	26	23	129	22	57	M16	UC309-26	P309
309-27	1-11/16													309-27
309-28	1-3/4													309-28
309		45												309		4.41
UCP 310-30	1-7/8		75	271	212	74	20	30	26	143	22	61	M16	UC310	P310
310-31	1-15/16													310-31
310		50												310		6.1
UCP 311-32	2		80	300	236	80	20	32	29	154	25	66	M16	UC311-32	P311
311-34	2-1/8													311-34
311		55												311		7.65
311-35	2-3/16													311-35
UCP 312-36	2-1/4		85	325	250	85	23	35	31	164	26	71	M20	UC312-36	P312
312		60												312		9.2
312-38	2-3/8													312-38
312-39	2-7/16													312-39
UCP 313-40	2-1/2		90	335	260	90	25	38	33	176	30	75	M20	UC313-40	P313
313		65												313		11.3
UCP 314-44	2-3/4		95	360	280	93	27	40	34	187	31	78	M22	UC314-44	P314
314		70												314		13
UCP 315		75	100	380	290	100	27	40	35	198	32	82	M22	UC315	P315	15.9
315-48	3													315-48
UCP 316		80	106	400	300	105	27	40	37	210	34	86	M22	UC316	P316	17.7
UCP 317-52	3-1/4		112	420	320	110	33	45	40	220	40	96	M27	UC317-52	P317
317		85												317		20.5
UCP 318-56	3-1/2		118	430	330	110	33	45	45	235	40	96	M27	UC318-56	P318
318		90												318		25.1
UCP 319		95	125	470	360	120	36	50	45	250	41	103	M30	UC319	P319	31.8
319-60	3-3/4													319-60
UCP 320		100	140	490	380	120	36	50	50	275	42	108	M30	UC320	P320	37.2
320-64	4													320-64
UCP 322		110	150	520	400	140	40	55	55	300	46	117	M33	UC322	P322	50.6
UCP 324		120	160	570	450	140	40	55	65	320	51	126	M33	UC324	P324	54.5
UCP 326		130	180	600	480	140	40	55	75	355	54	135	M33	UC326	P326	68.4
UCP 328		140	200	620	500	140	40	55	75	390	59	145	M33	UC328	P328	82.1

Enquire Now

Downloads

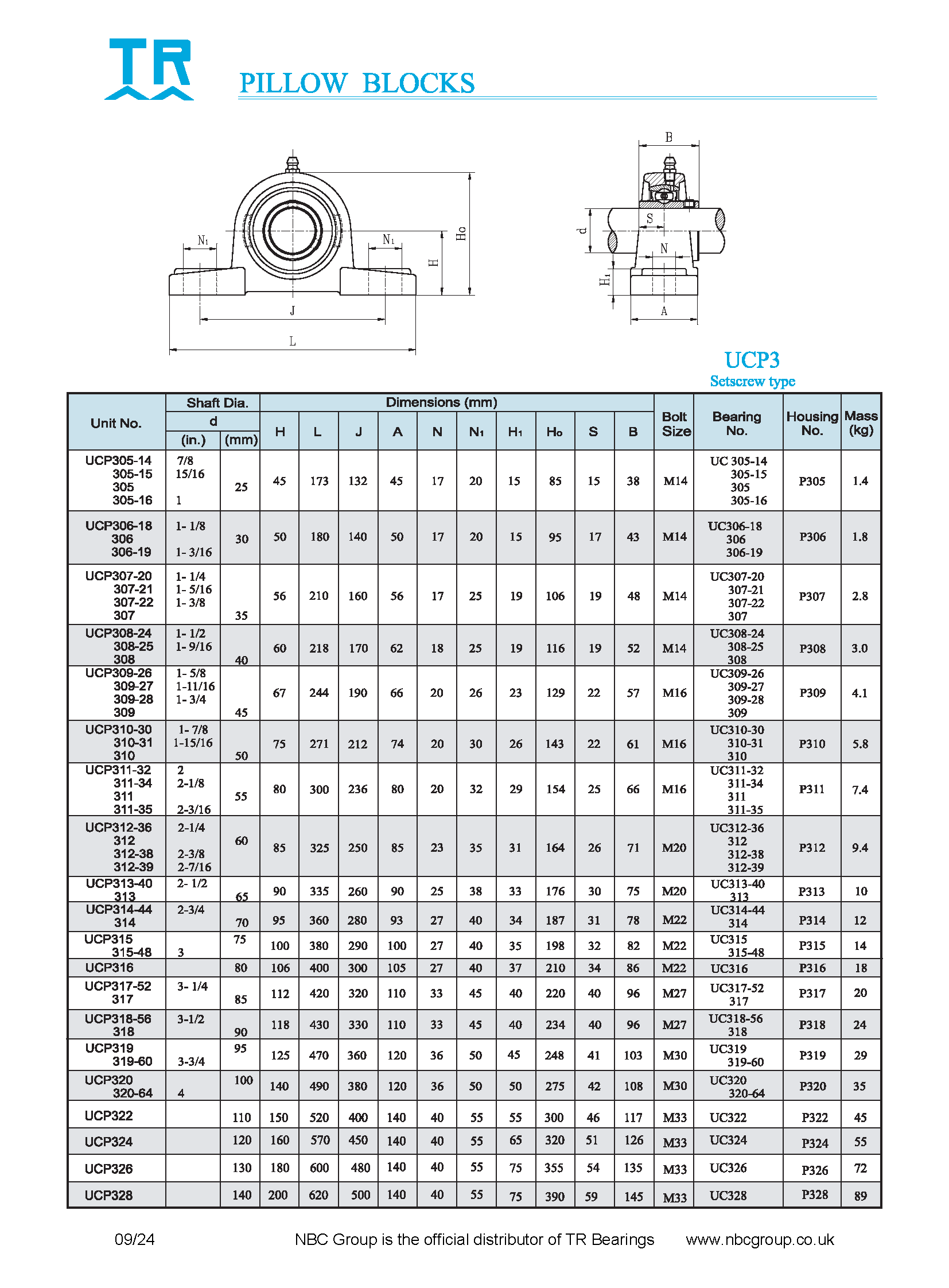

UCP 300 Catalogue
