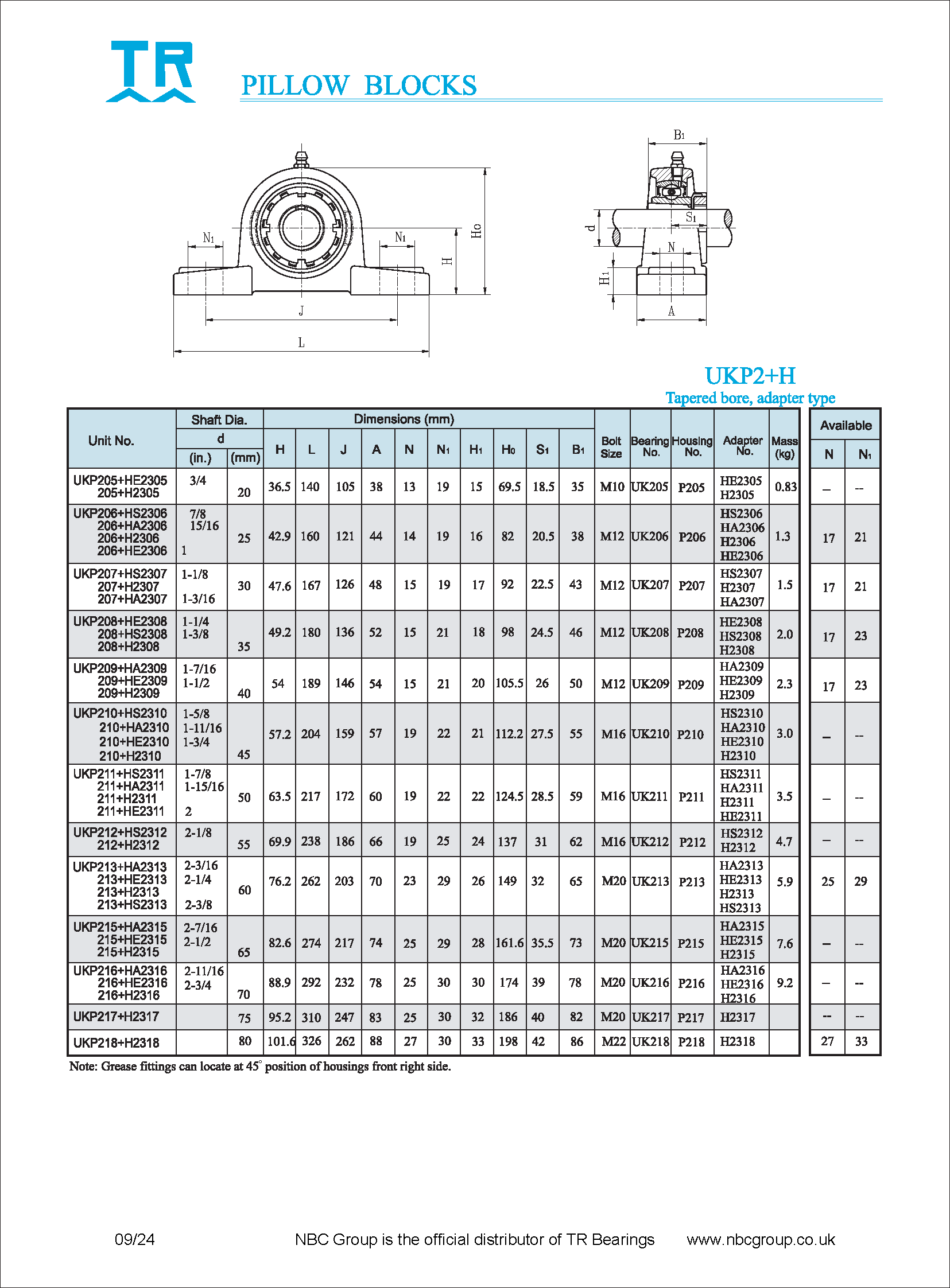

UKP 200 Series

2-Piece cast iron blocks, adapter type with a sleeve

Typical TR references

UCP / UKP / UCPX/ UCPA

Typical NSK-RHP references

NP / SL / MP / SNP / CNP

Typical SKF references

SY / SYJ / SYH / SYM / SYF

Enquire Now

Got a project that demands precision?

Our engineers design, manufacture, and supply components to your exact specification. Contact us to discuss your project.

Get In Touch

Product Overview

Bearing units consist of series of metric or imperial bore wide inner ring sealed ball bearings with spherical outer diameter inserted in a wide range of pressed steel and cast iron housings which are able to accommodate static misalignment.

Mounted bearing units are manufactured in a variety of bore sizes ranging from 12 -100mm or 1/2″ – 4″ with a variety of locking mechanisms and seals.

Special types for agricultural use are also manufactured.

Pressed steel housing styles cover a range of round and triangular flange units as well as pillow blocks.

More popular are the Cast Iron housing styles, which include long and short base pillow blocks, 2- and 4-bolt flange units, take-up units, flange cartridge units and hanger units.

While most inserts feature a standard lip seal with integral flinger, a triple lip seal with flinger is recommended for use in contaminated environments.

Various locking methods are available, including set screw locking, eccentric collar and even taper lock sleeve.

What are the Typical Uses for Bearing Units?

Quarry and Mining
Tillage Equipment
Industrial Machinery
Conveyor Systems and Material Handling

Dimensions

Warning: Undefined array key "alt" in /home/nbcgroup/public_html/app/themes/wmm/template-parts/products/tab-repeater.php on line 206

Enquire Now

Downloads

UKP 200 Series

Enquire Now

Enquire Now About UKP 200 Series

For any enquiries regarding UKP 200 Series, please complete our enquiry form, and a member of our technical team will respond promptly. Alternatively, you can reach out directly to one of our offices using the contact details here. Our specialists are ready to provide guidance and support tailored to your machinery and engineering needs.

Unit No.	Shaft Dia		Dimensions (mm)											Bolt size	Bearing No.	Housing No.	Mass (kg)
	d		H	L	J	A	N	N1	H1	H0	S	B	A4
	(in.)	(mm)
UCP 201S		12	30.2	125	96	32	12	16	13	57	11.5	27.4	—	M10	UC201S	P203S	0.53
201-8S	1/2														201-8S
202S		15													202S		0.52
202-10S	5/8														202-10S
203S		17													203S		0.51
203-11S	11/16														203-11S
UCP201		12	30.2	127	96	37	13	19	14	60.7	12.7	31	—	M10	UC201	P203S	0.72
201-8	1/2														201-8
202		15													202		0.7
202-10	5/8														202-10
203		17													203		0.69
203-11	11/16														203-11
UCP 204-12	3/4		33.3	127	96	37	13	16	14	65	12.7	31	45	M10	UC204-12	P204
204		20													204		0.69
UCP 205-14	7/8		36.5	140	105	38	13	19	15	71	14.3	34	48	M10	UC205-14	P205
205-15	15/16														205-15
205		25													205		0.82
205-16	1														205-16
UCP 206-18	1-1/8		42.9	160	121	44	14	19	16	83	15.9	38.1	52	1	UC206-18	P206
206		30													206		1.22
206-19	1-3/16														206-19
206-20	1-1/4														206-20
UCP 207-20	1-1/4		47.6	167	126	48	15	19	17	93	17.5	42.9	59	M12	UC207-20	P207
207-21	1-5/16														207-21
207-22	1-3/8														207-22
207		35													207		1.61
207-23	1-7/8														207-23
UCP 208-24	1-1/2		49.2	180	136	52	15	21	18	100	19	49.2	68	M12	UC208-24	P208
208-25	1-9/16														208-25
208		40													208		1.99
UCP 209-26	1-5/8		54	190	146	54	15	21	20	108	19	49.2	70	M12	UC209-26	P209
209-27	1-11/16														209-27
209-28	1–3/4														209-28
209		45													209		2.36
UCP 210-30	1-7/8		57.2	204	159	57	19	22	21	114	19	51.6	75	M16	UC210-30	P210
210-31	1-15/16														210-31
210		50													210		2.73
UCP 211-32	2		63.5	217	172	60	19	22	22	126	22.2	55.6	78	M16	UC211-32	P211
211-34	2-1/8														211-34
211		55													211		3.42
211-35	2-3/16														211-35
UCP 212-36	2-1/4		69.9	238	186	66	19	25	24	138	25.4	65.1	91	M16	UC212-36	P212
212		60													212		4.66
212-38	2-3/8														212-38
212-39	2-7/16														212-39
UCP 213-40	2-1/2		76.2	262	203	70	23	29	26	151	25.4	65.1	98	M20	UC213-40	P213
213		65													213		5.95
UCP 214-44	2-3/4		79.4	266	210	72	23	29	27	157	30.2	74.6	—	M20	UC214-44	P214
214		70													214		6.56
UCP 215		75	82.6	274	217	74	25	29	28	164	33.3	77.8	—	M20	UC215	P215	7.43
215-48	3														215-48
UCP 216		80	88.9	292	232	78	25	30	30	175	33.3	82.6	—	M20	UC216	P216	8.83
UCP 217-52	3-1/4		95.2	310	247	83	25	30	32	187	34.1	85.7	—	M20	UC217-52	P217
217		85													217		10.8
UCP 218-56	3-1/2		101.6	326	262	88	27	30	33	200	39.7	96	—	M22	UC218-56	P218
218		90													218		12.8
UCP 220		100	115	380	305	95	30	36	40	225	42	108	—	M24	UC220	P220	26.3
220-64	4														220-64
